General Order Supplier & Services

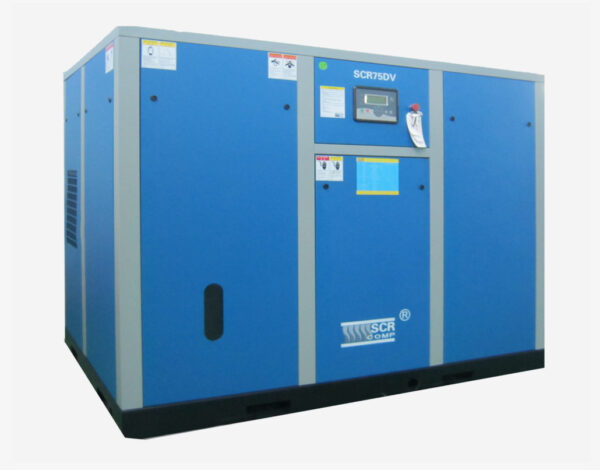

VSD Screw Air Compressor



Product Manual

1.Large rotors and low speed running result in a low noise, low vibration airend that produces exceptional flow rates.

2.The rotor is manufactured in a class leading wear-resistant high strength alloy steel

3.Variable speed main motor

The unique motor design offers a maximum torque throughout the wide speed range.

The motor is designed to reduce heat build up in the rotor, thus avoiding any damage to the motor insulation.

A separate force ventilated cooling fan ensures correct motor cooling even at prolonged periods of low speed running.

4.Bigger current vector inverter

Oversized vector controlled Variable speed drive guarantees maximum current output

5.Vector control technology minimises motor temperature and offers sufficient torque for low speed operation.

6.German KTR coupling

7.High quality air filter system

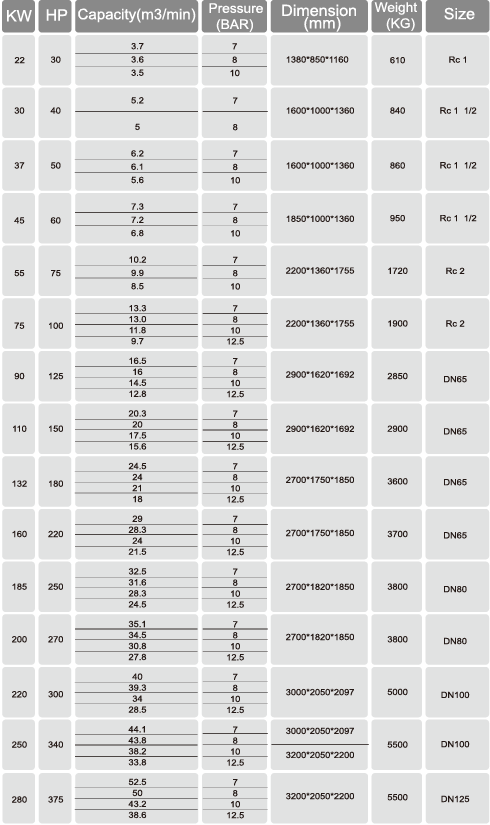

Technical Perimeters
