Product Description
High Performance Airend
- High efficiency airend profile,optimized design for PM motor application
- Designed life-span for airend is more than 100,000.00hours.
IE4 Efficency permanent magnet motor
- IP65 protection grade, F insulation, more suitable for dusty condition
- IE4 efficiency help save more energy.
- The motor winding is 100% sealed by epoxy resin, zero risk for the short circuit, more reliable quality.
- Free bearing design, no need to maintenance for the PM motor

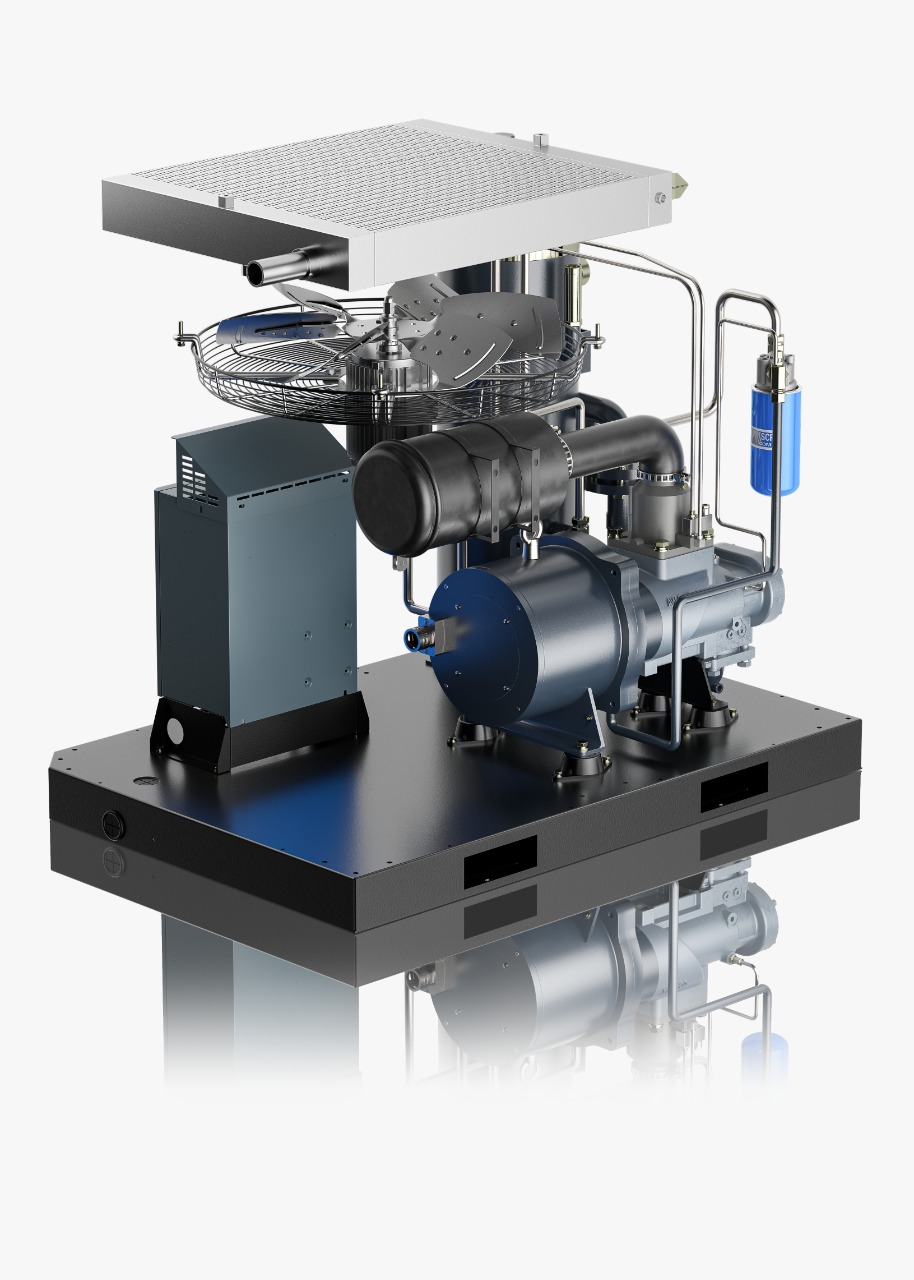

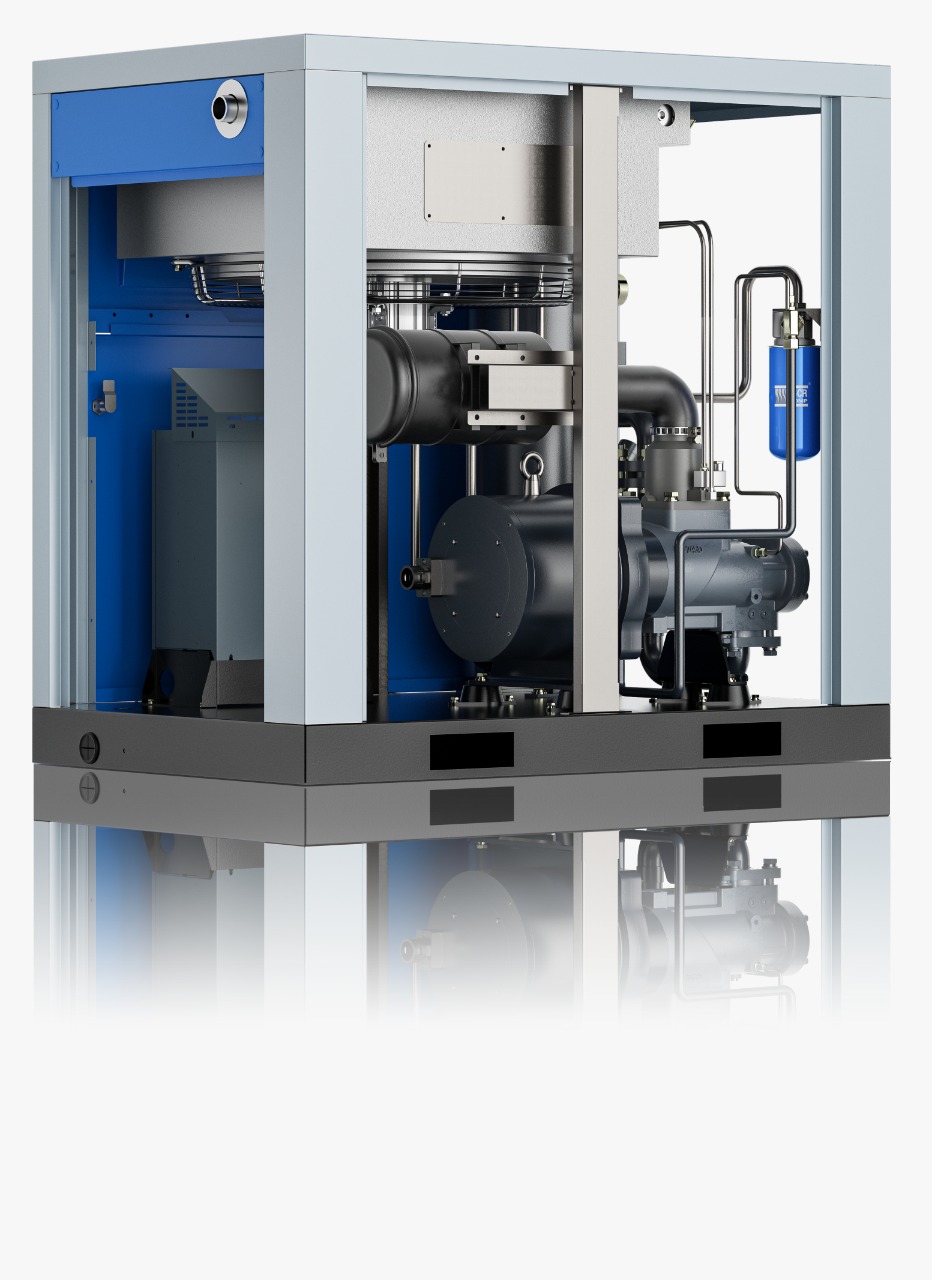

Airend and PM motor
- 1:1 direction connection, better transmission efficiency
- Taper connection between airend and PM motor, more easy for after service
Innovative flux inventer
- CE certificate, more safety.
- Automatic airend speed adjust to match your air demand, help good energy saving.
- Customs inverter for compressor, more suitable for compressor heavy duty application.

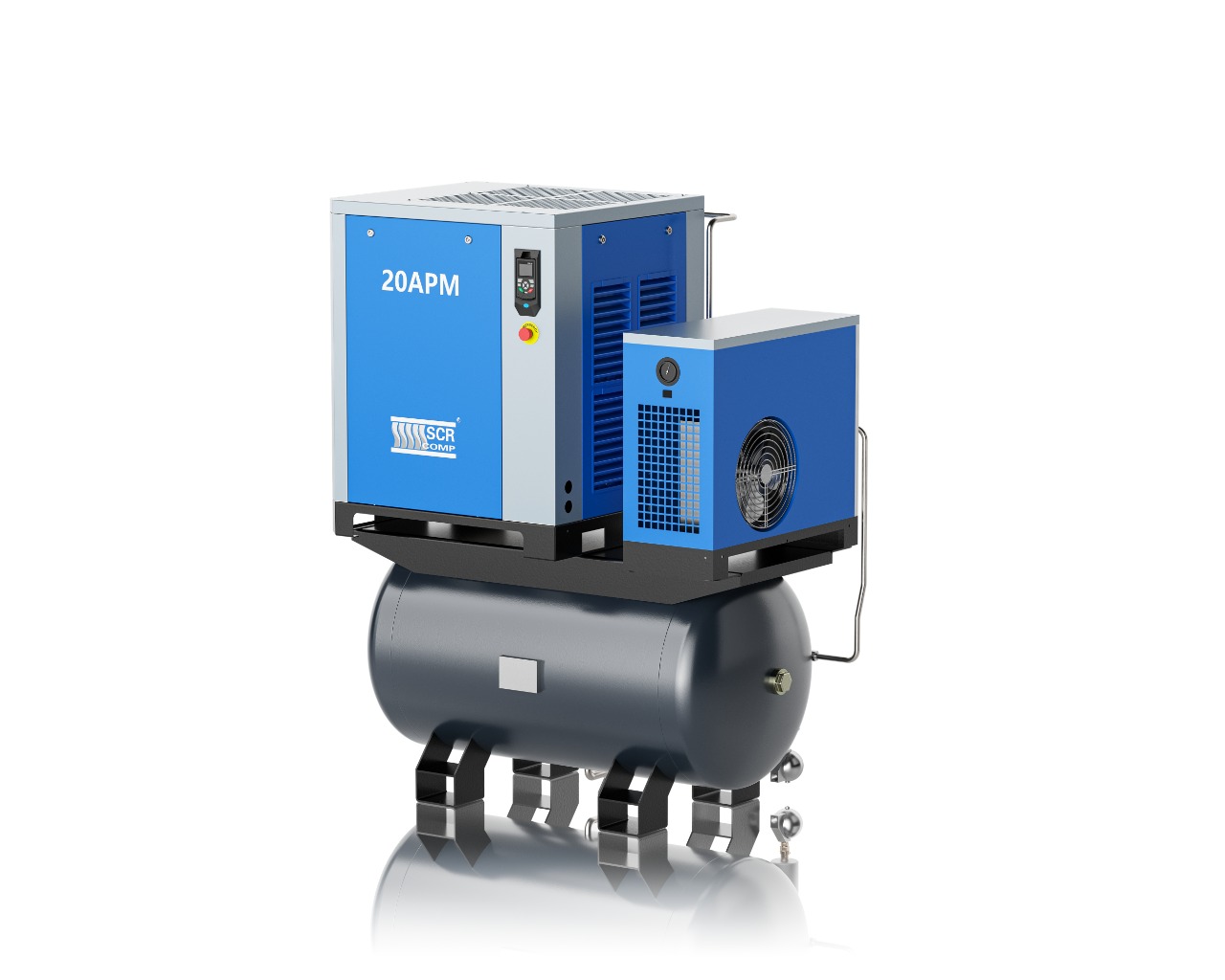

Refrigerater air dryer
- Adopt environmentally friendly refrigerants R134a
- Stainless steel heat exchanger, better heat exchange capability.
- Pre-filter is standard, other pipe filter is option.
- Wide effective temperature band with ambient temperature range from 2 to 43°C

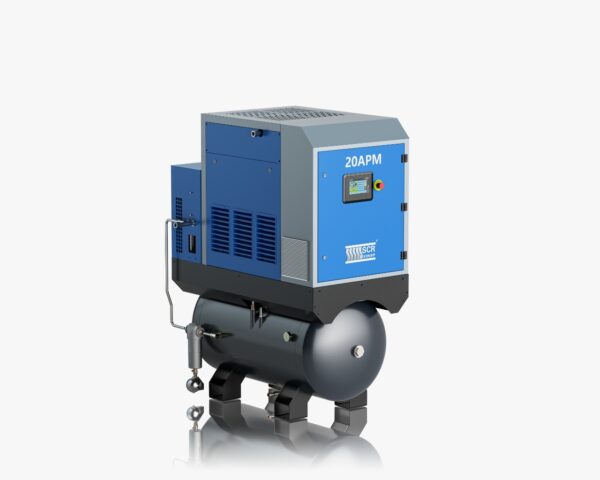

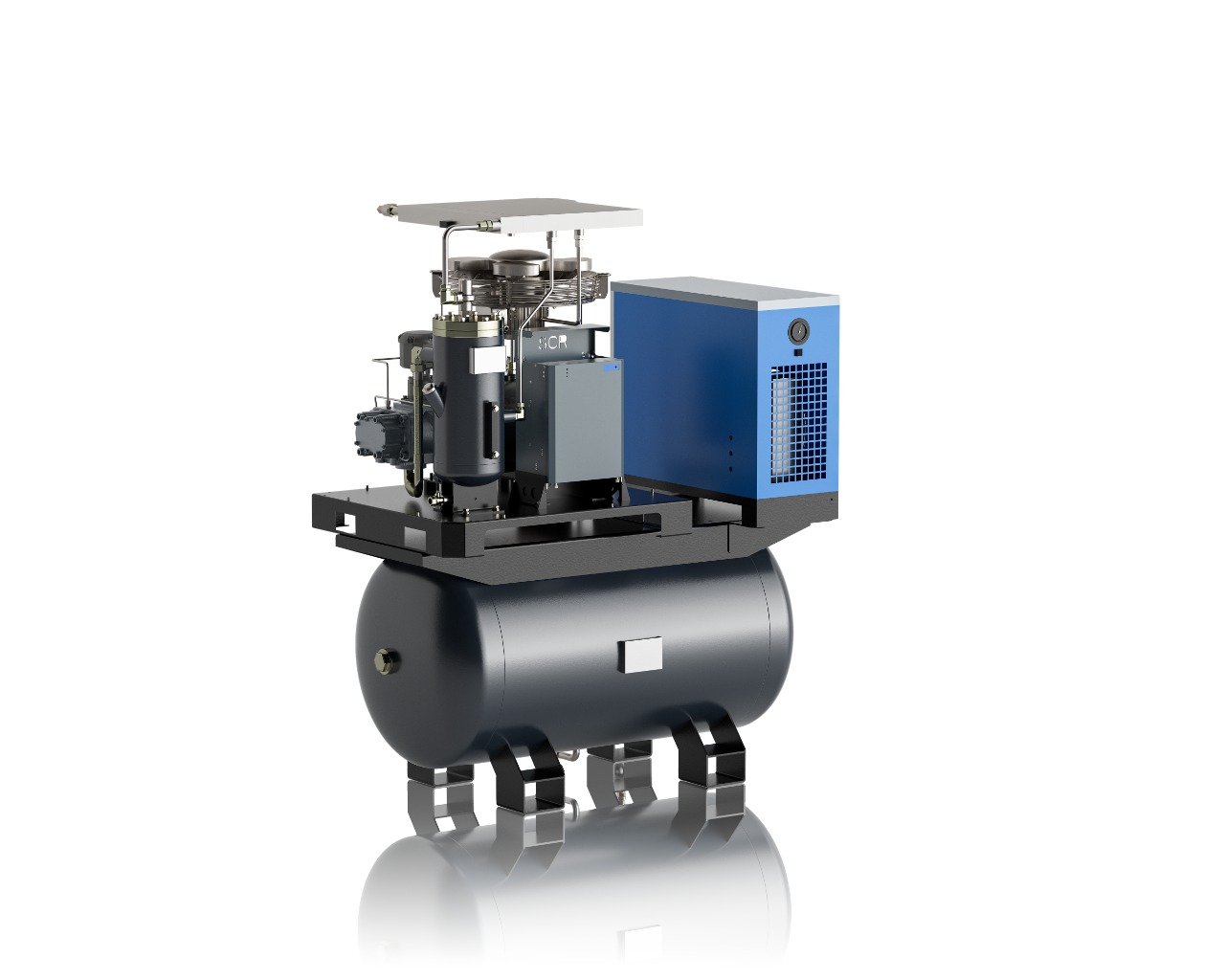

Air receiver
- Tank mounted design, 300L air receiver for 10HP, 500L air receiver for 15/20HP.

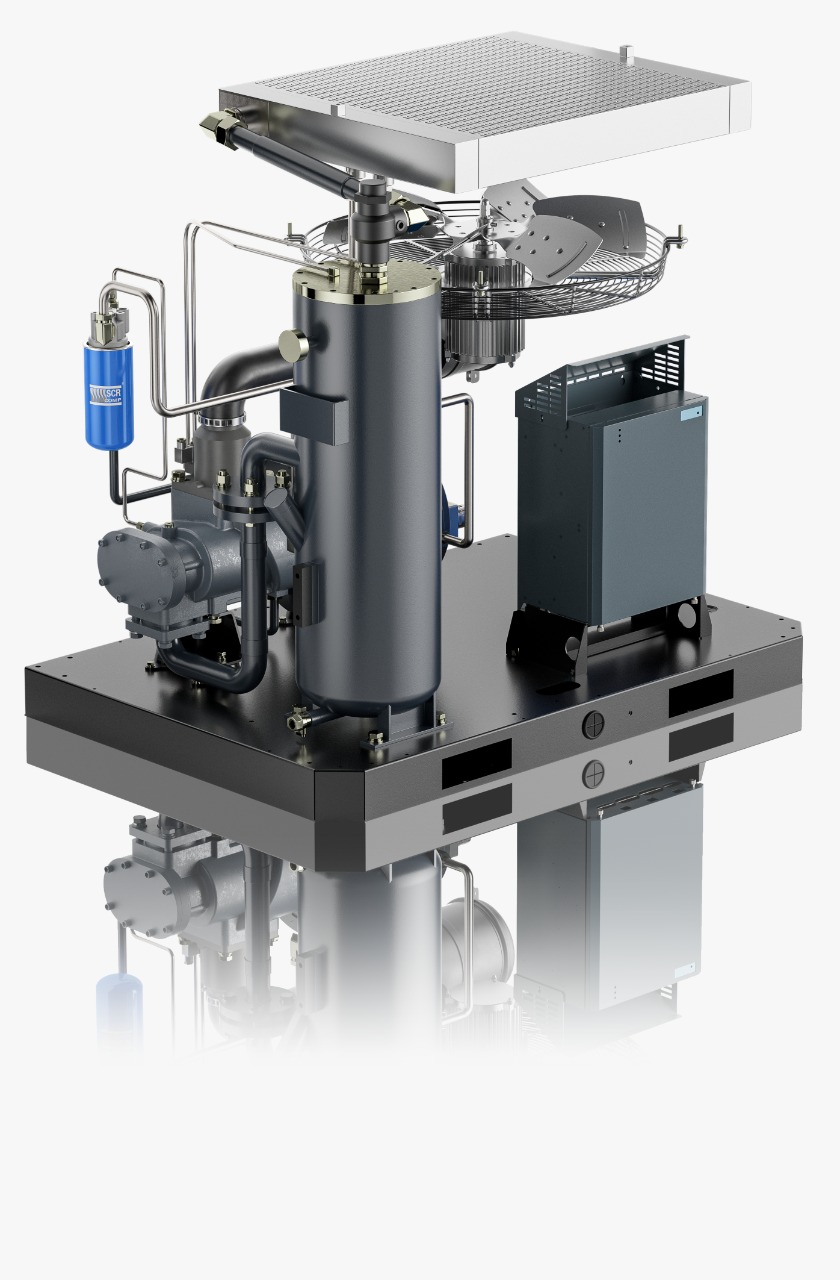

Integrated Tank
- Integrated tank with labyrinth structure, help reduce oil content, the oil content is less than 3 PPM.
- Save the space structure, make the whole layout more compact and reasonable.
- SCR unique patent with CE certification.
